Series Espana

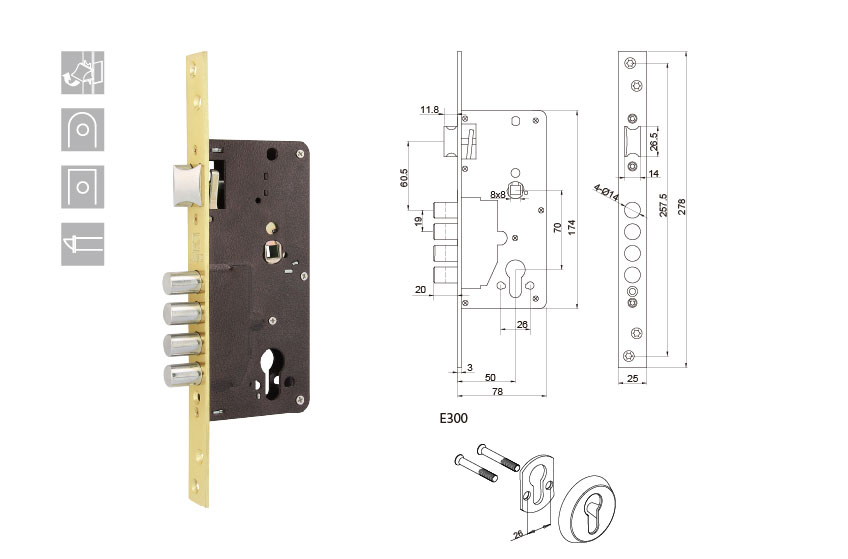

Ref. 3470
| - available backset: | 50mm |
| - hole centre: | 70, 85mm |
| - follower: | 8x8mm |
| - forend & striker: | steel |
| - common finishing: | BP,AB, SB, SN |
| - latch: | zamak |
| - deadbolt: | 4 steel round bolts |
- - for Euro profile cylinder with 15mm radius cam
- - latch driven by both lever handle and cylinder
- - 4 steel round bolts provide extra security, driven by cylinder, double-throw
- - stagger screw holes positioned in forend for better fixing
- - lobulate screw holes in forend, looseness-proof
- - linearized arc at the bottom of cylinder hole to home cylinder better when it is screwed
- - security escutcheons E300 optional, for better protection of cylinder
- - constructed with high security, ideal for main entrance door for better protection of property
