Series DIN

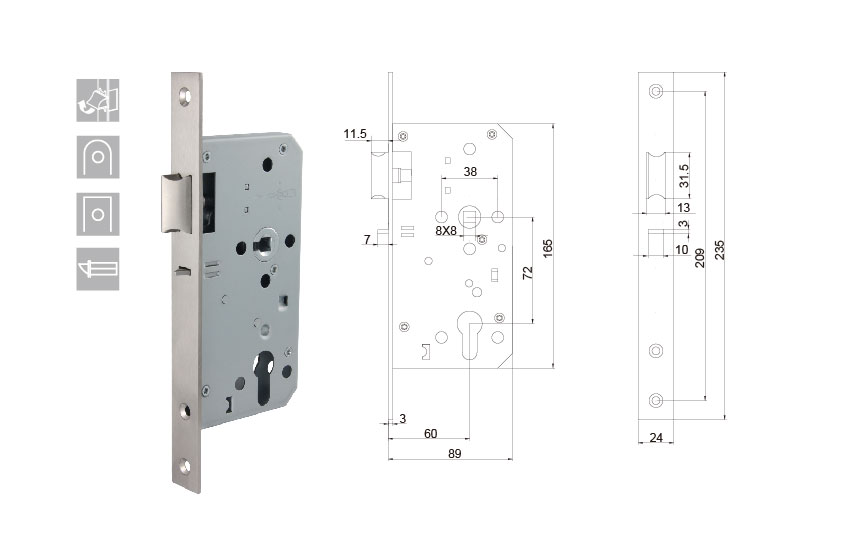

Ref. 72NF
| - available backset: | 60mm |
| - hole centre: | 72mm |
| - follower: | 8x8mm |
| - forend & striker: | inox |
| - common finishing: | SSS, PVD |
| - latch: | inox |
| - available width of forend: | 20, 24mm |
- - conforms to DIN 18.250 class 3
- - for Euro profile cylinder with 15mm radius cam
- - inox latch, fire-resistant
- - usually used in conjunction with one fixed handle on the outside of door which just can push/pull the door, latch driven by cylinder only. on the inside of door, latch driven by both lever handle and cylinder
- - anti-card device: when the door is closed, the system prevents the latch from being withdrawn with the use of a simple card
- - sprung follower for better attraction of the handle
