Series AFR
Ref. 9040
| - available backset: | 40mm |
| - hole centre: | 70mm |
| - follower: | 7x7mm or 8x8mm (handle), 6x6mm (turn knob) |
| - forend & striker: | steel |
| - common finishing: | BP, AB, SN |
| - latch: | zamak |
| - deadbolt: | steel |

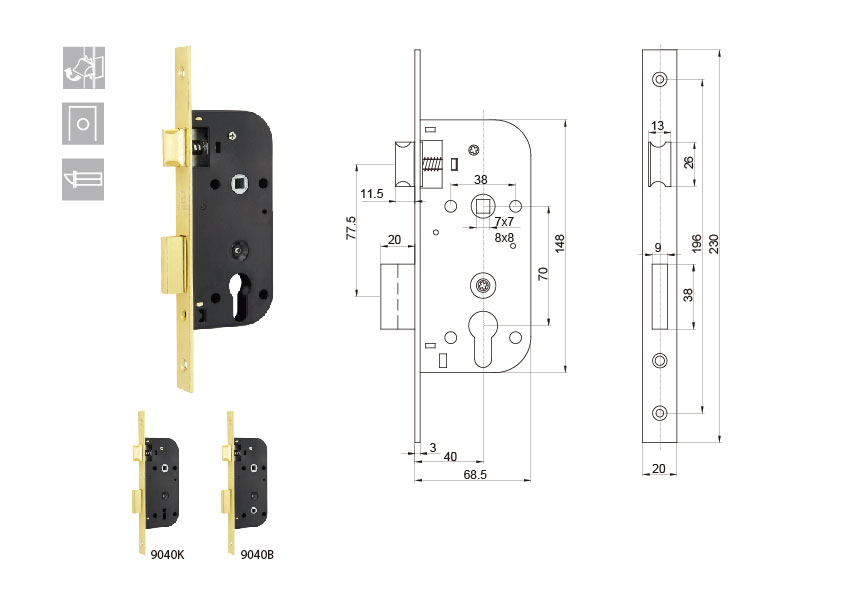

- 9040C
- - for Euro profile cylinder with 15mm radius cam
- - latch in convex shape for a soft closing of door, driven by both lever handle and cylinder
- - deadbolt driven by cylinder, double-throw
- - plastic adaptor as option to accommodate the follower from 8mm to 7mm
- 9040K
- - 2 zamak keys, in 6 differs
- - latch in convex shape for a soft closing of door, driven by both lever handle and key
- - deadbolt driven by key, double-throw
- - plastic adaptor as option to accommodate the follower from 8mm to 7mm
- 9040B
- - for bathroom
- - latch in convex shape for a soft closing of door, driven by lever handle only
- - deadbolt driven by turn knob, single-throw
- - plastic adaptor as option to accommodate the follower from 8mm to 7mm
